Year: 2019
Scope: Detailed Drawings
Group Work (2 Students)
These sets of drawings were undertaken for an architectural detailing course. Pairs of students were assigned to an architect who had a current project being built. The task was to document the details and joints of the building construction into a report.
Plan + Section

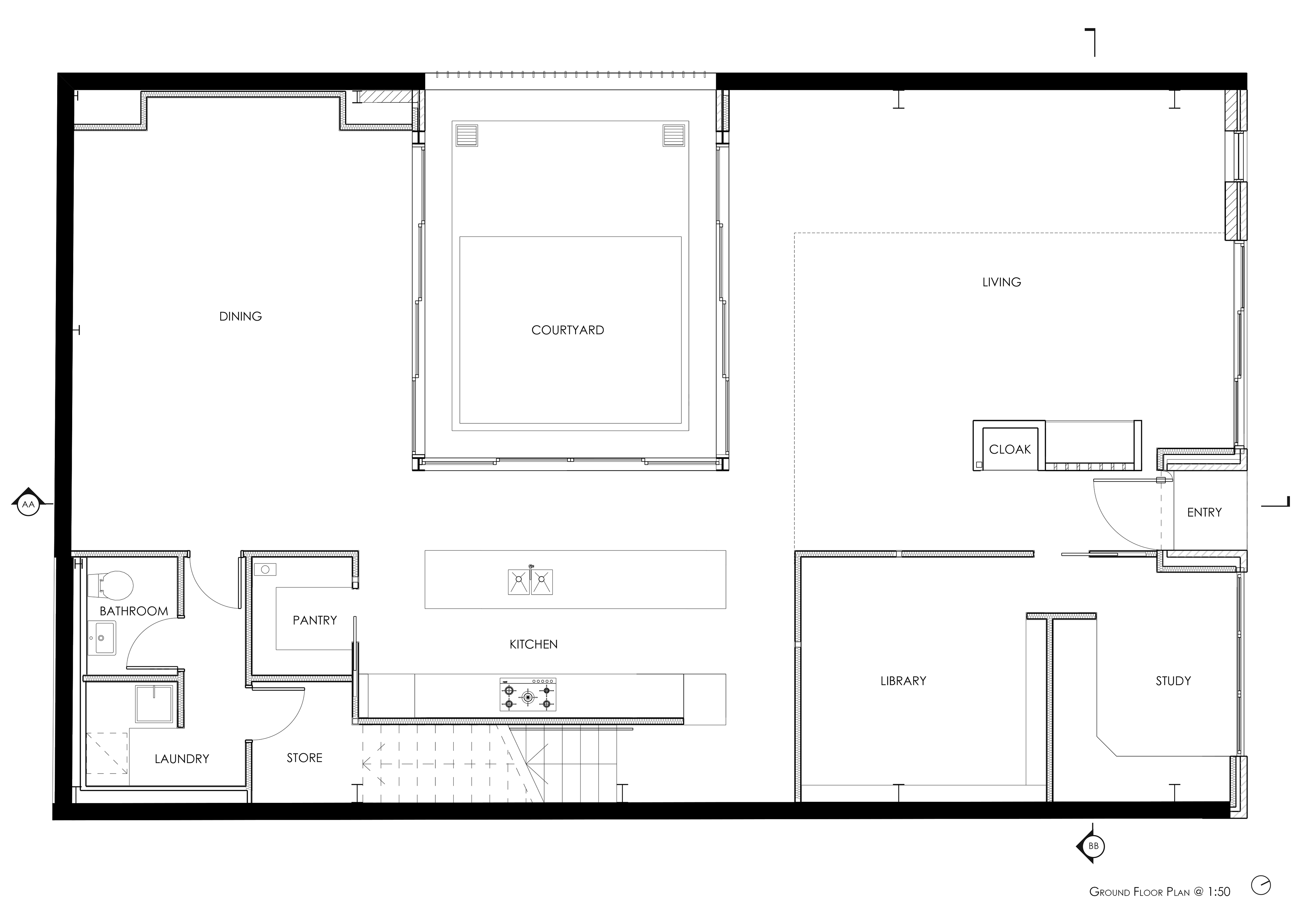

Ground Floor Plan

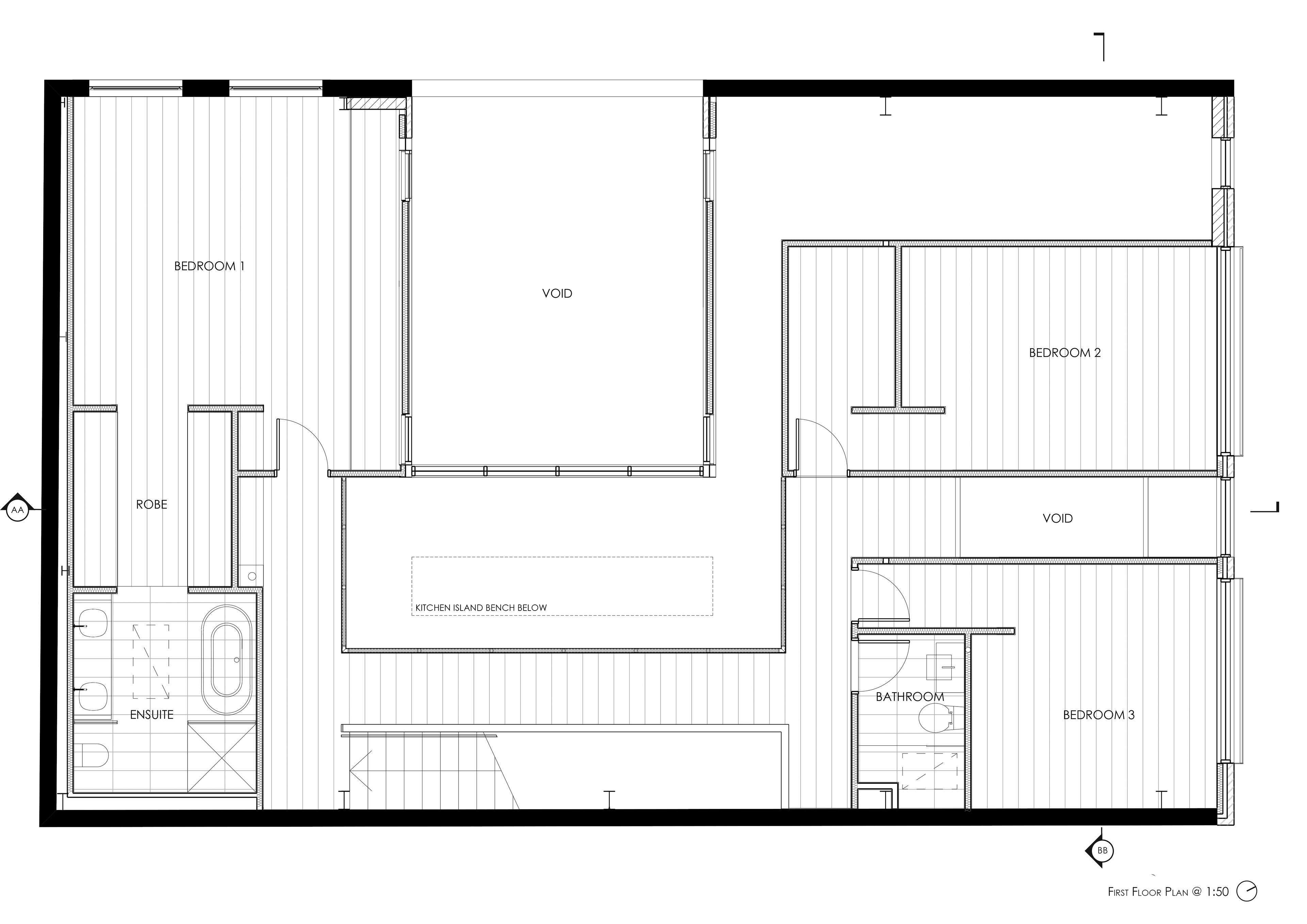

First Floor Plan

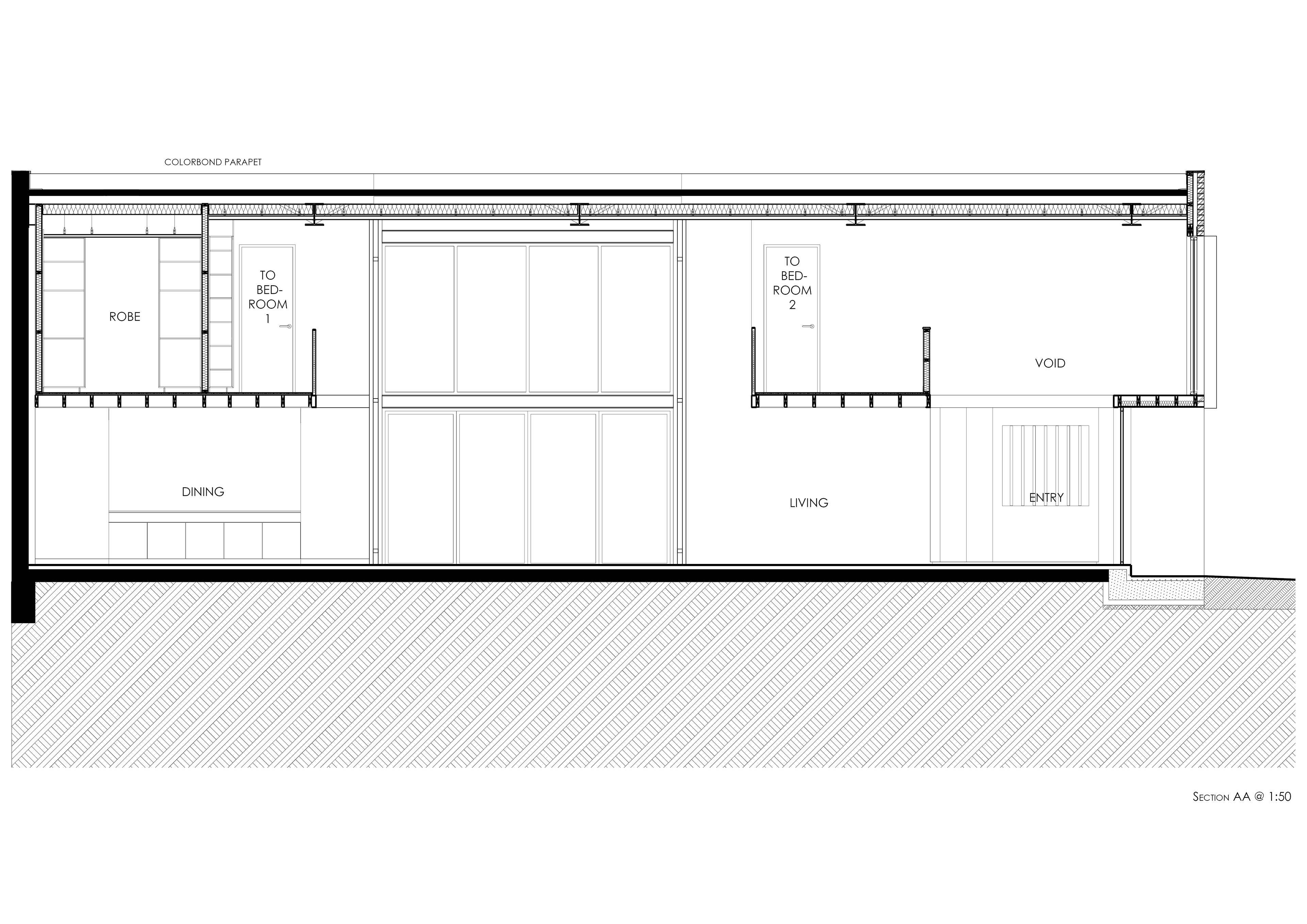

Section AA

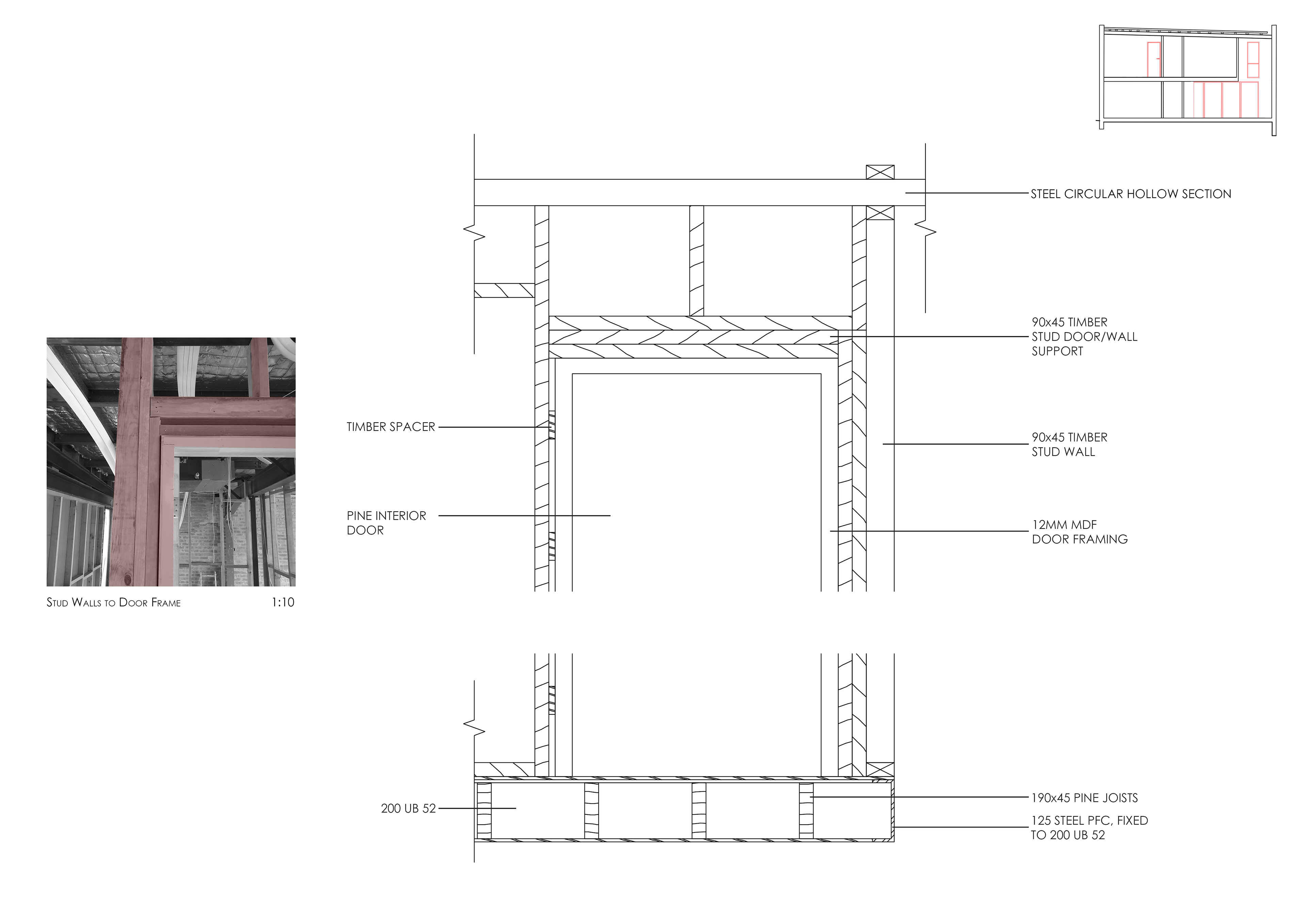

Detail Drawings

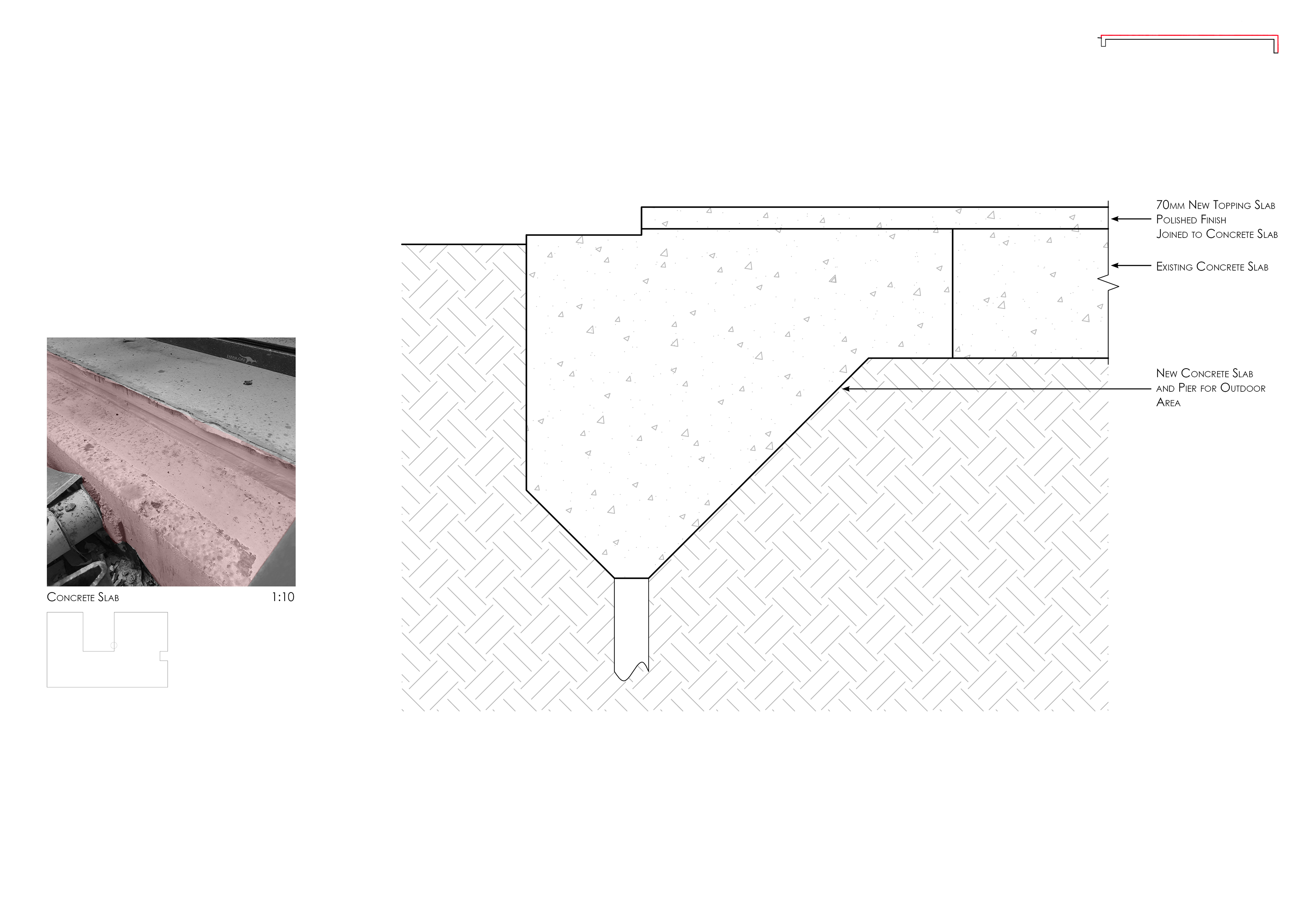

Footing

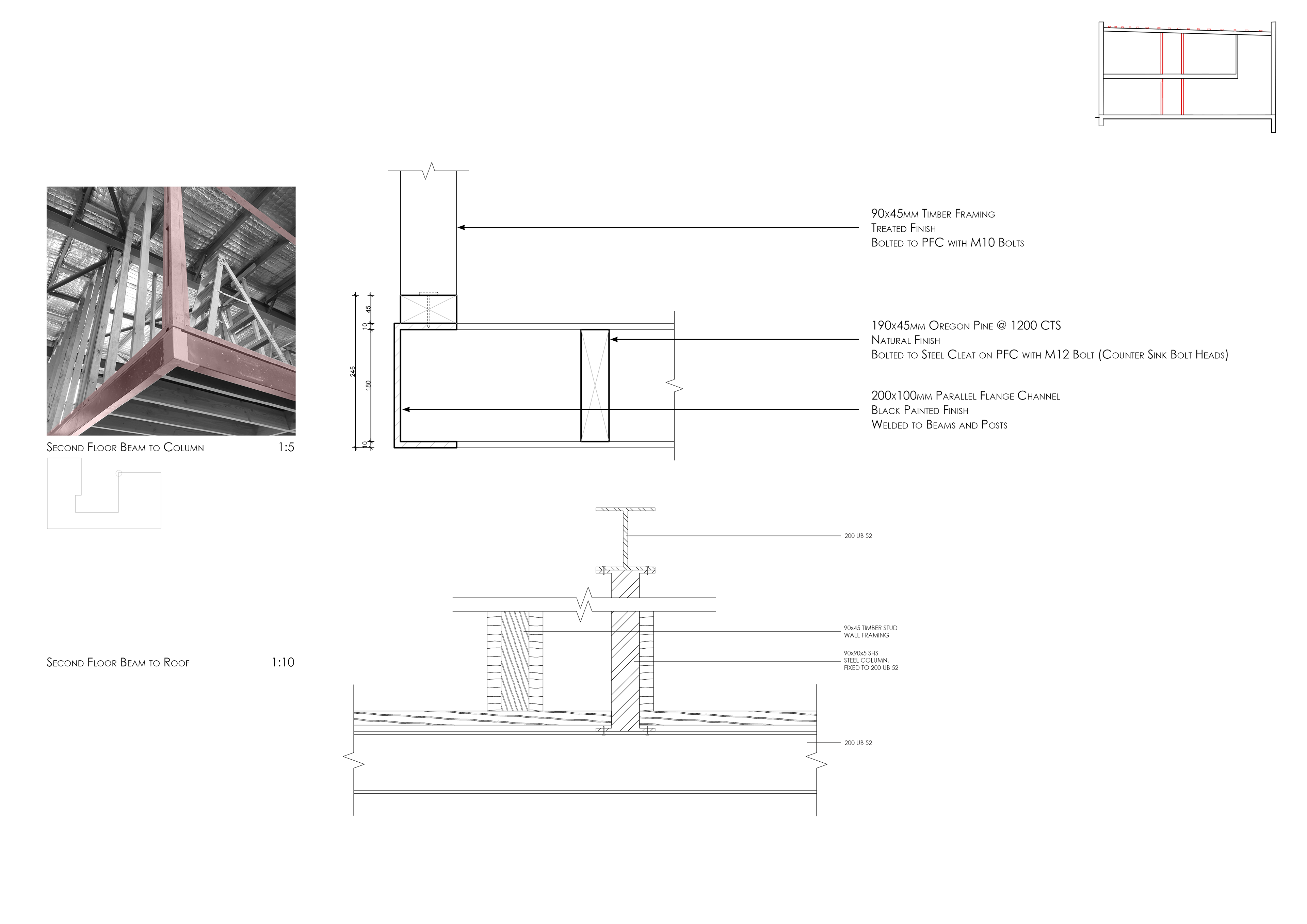

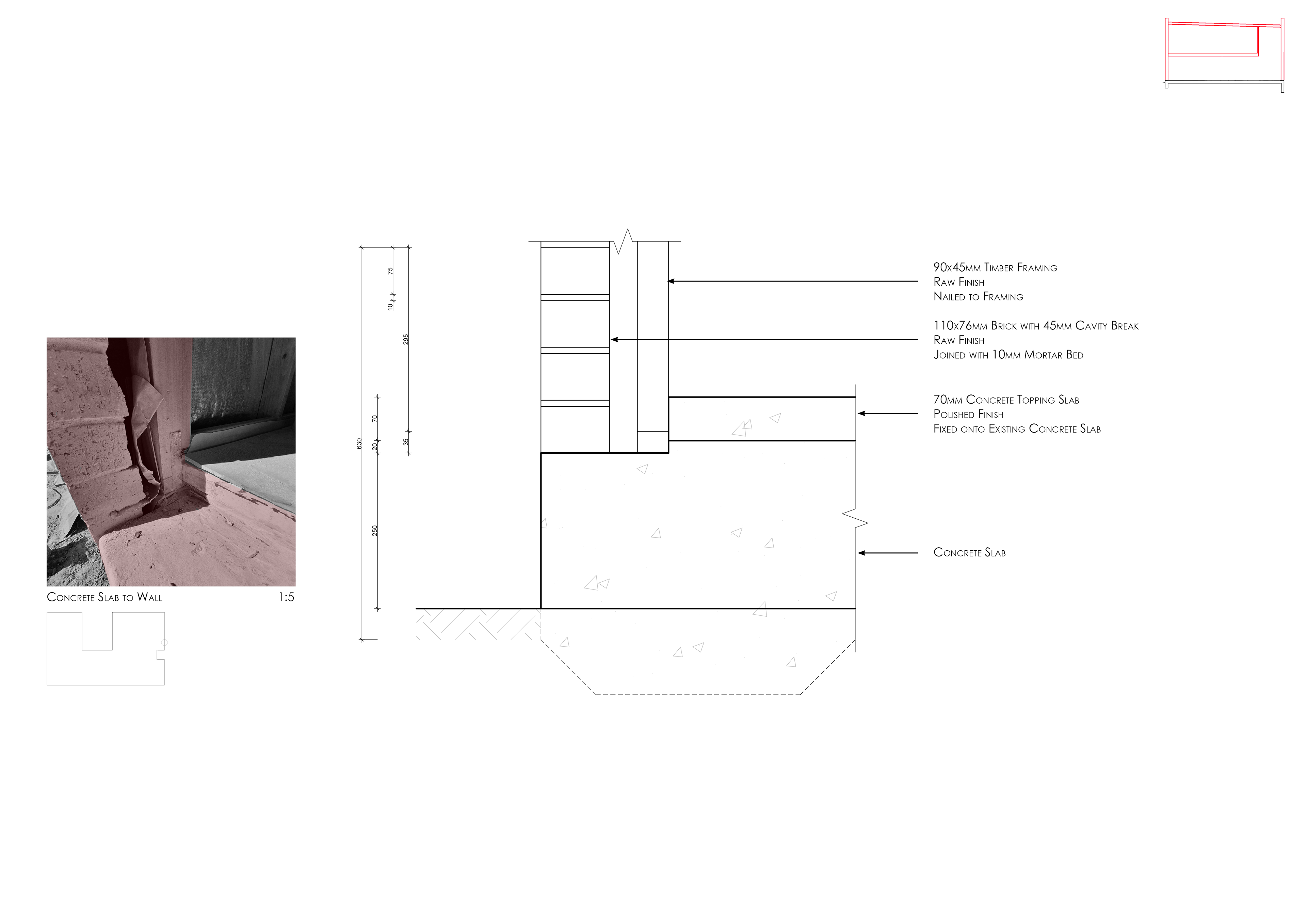

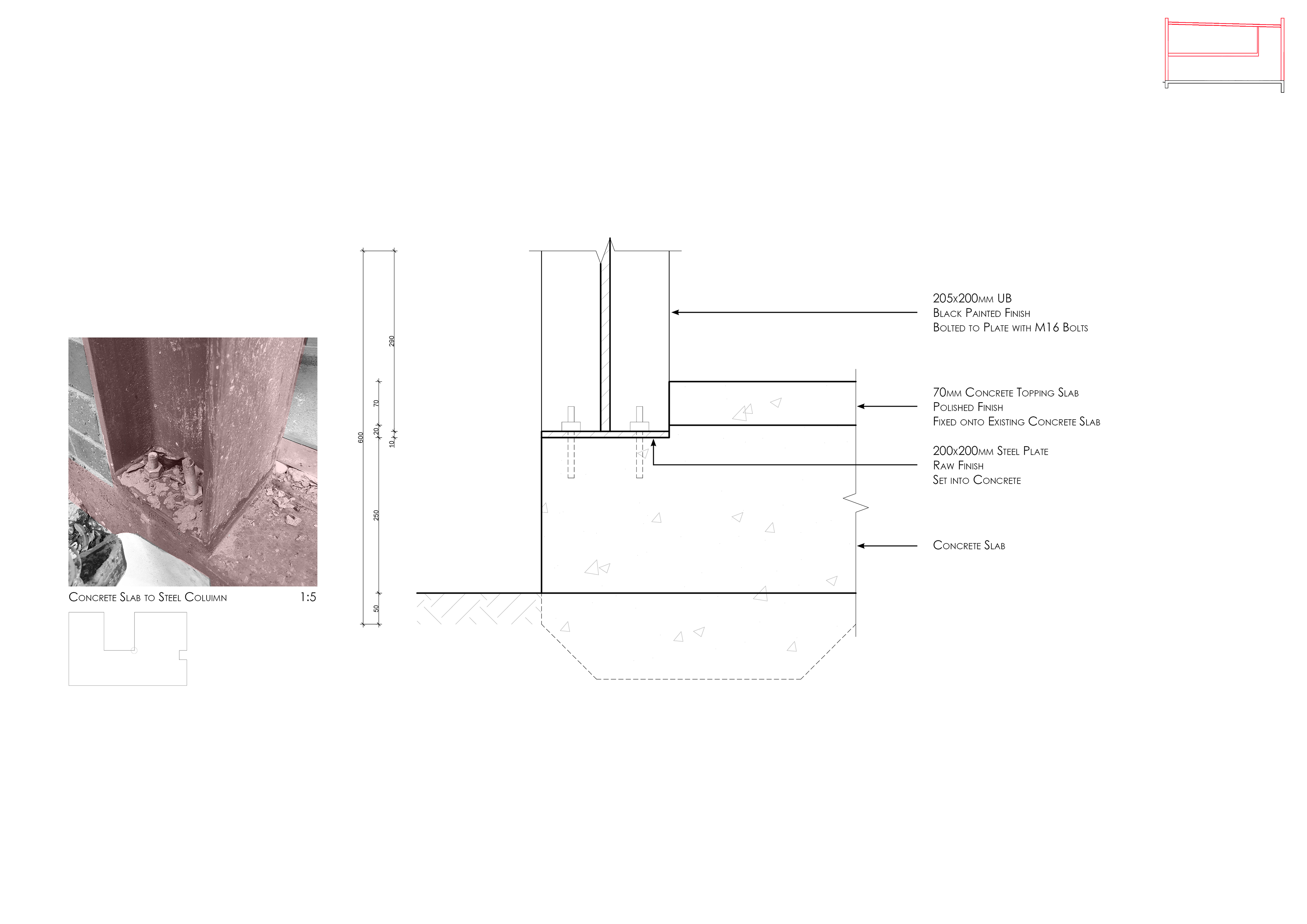

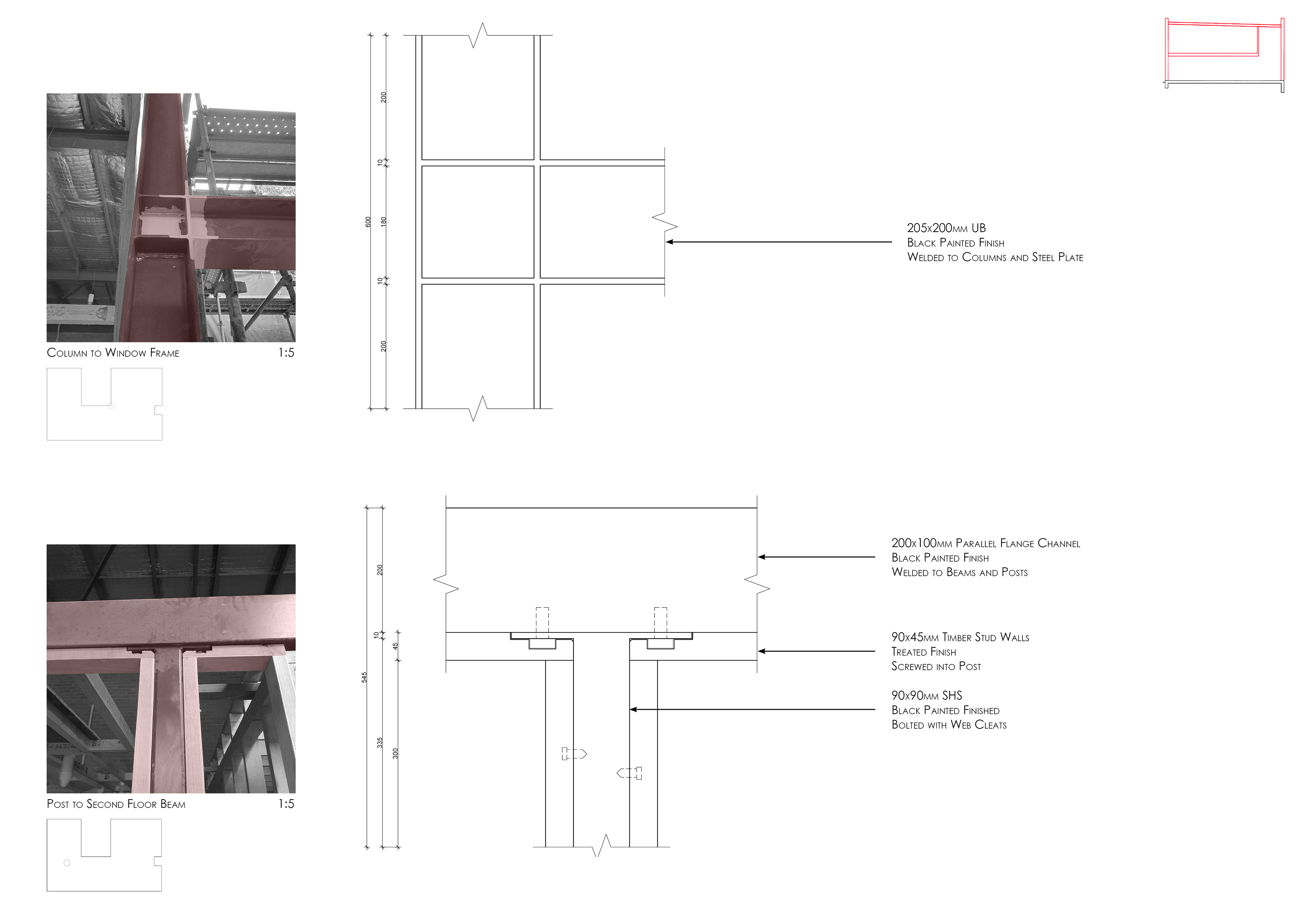

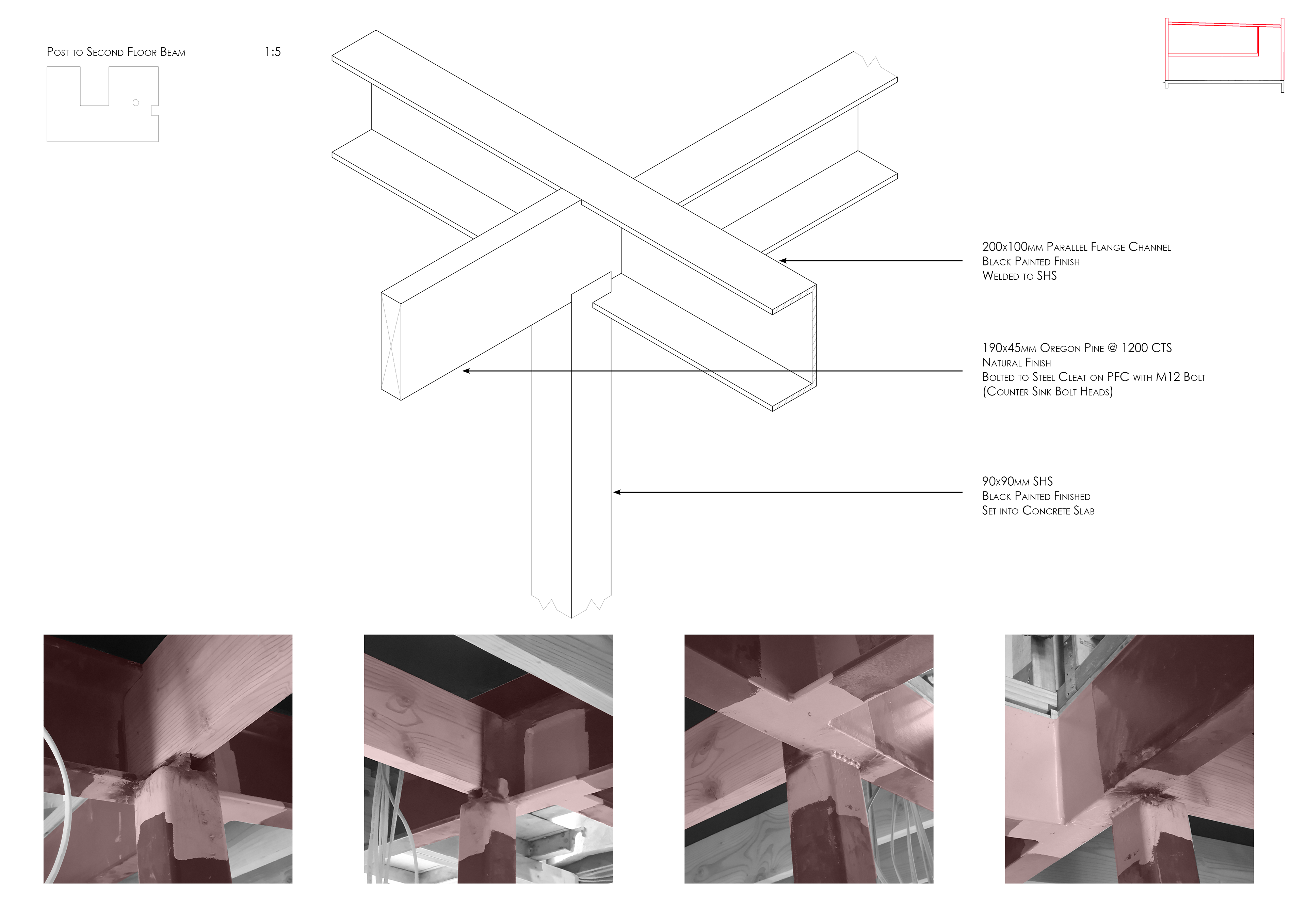

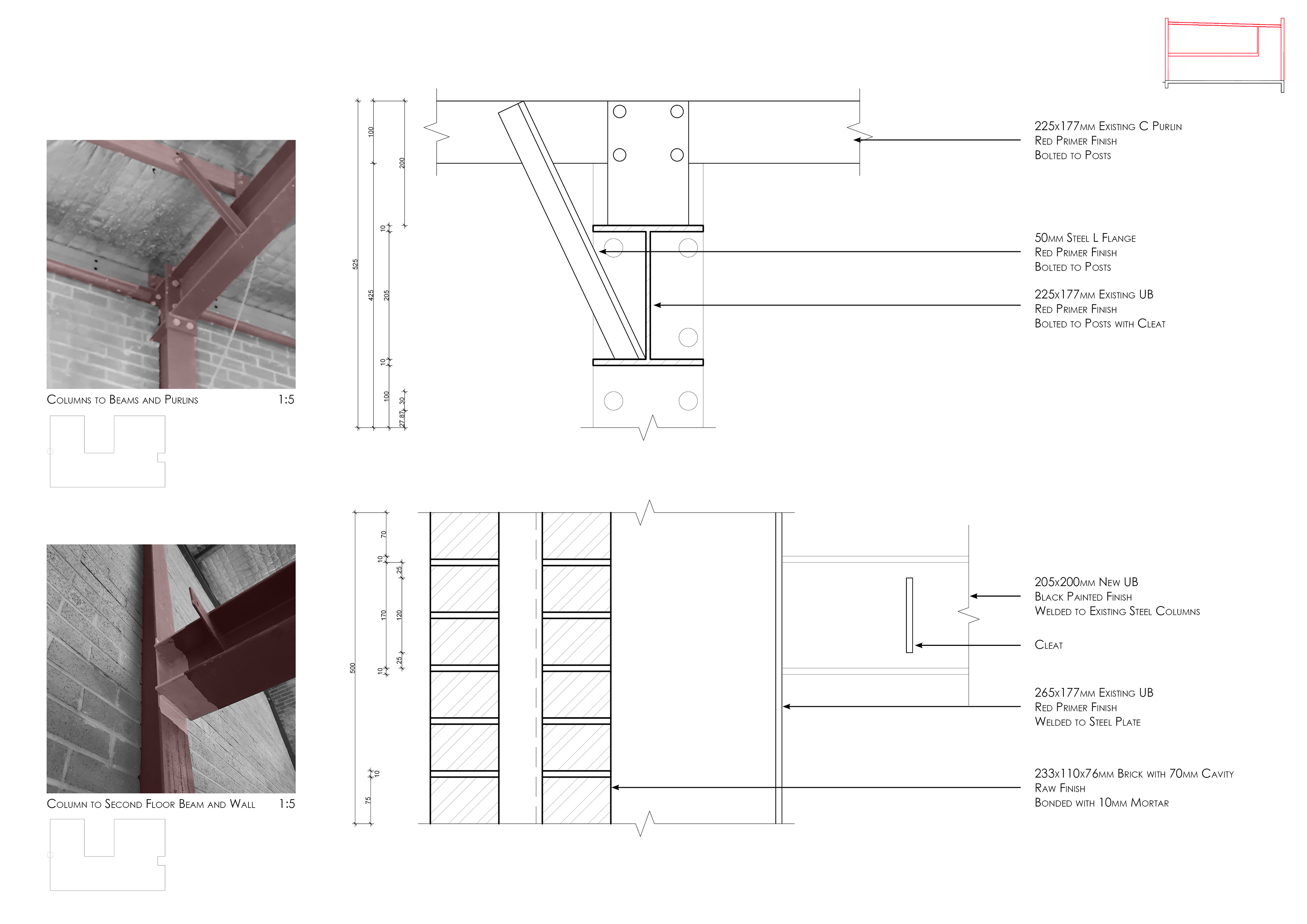

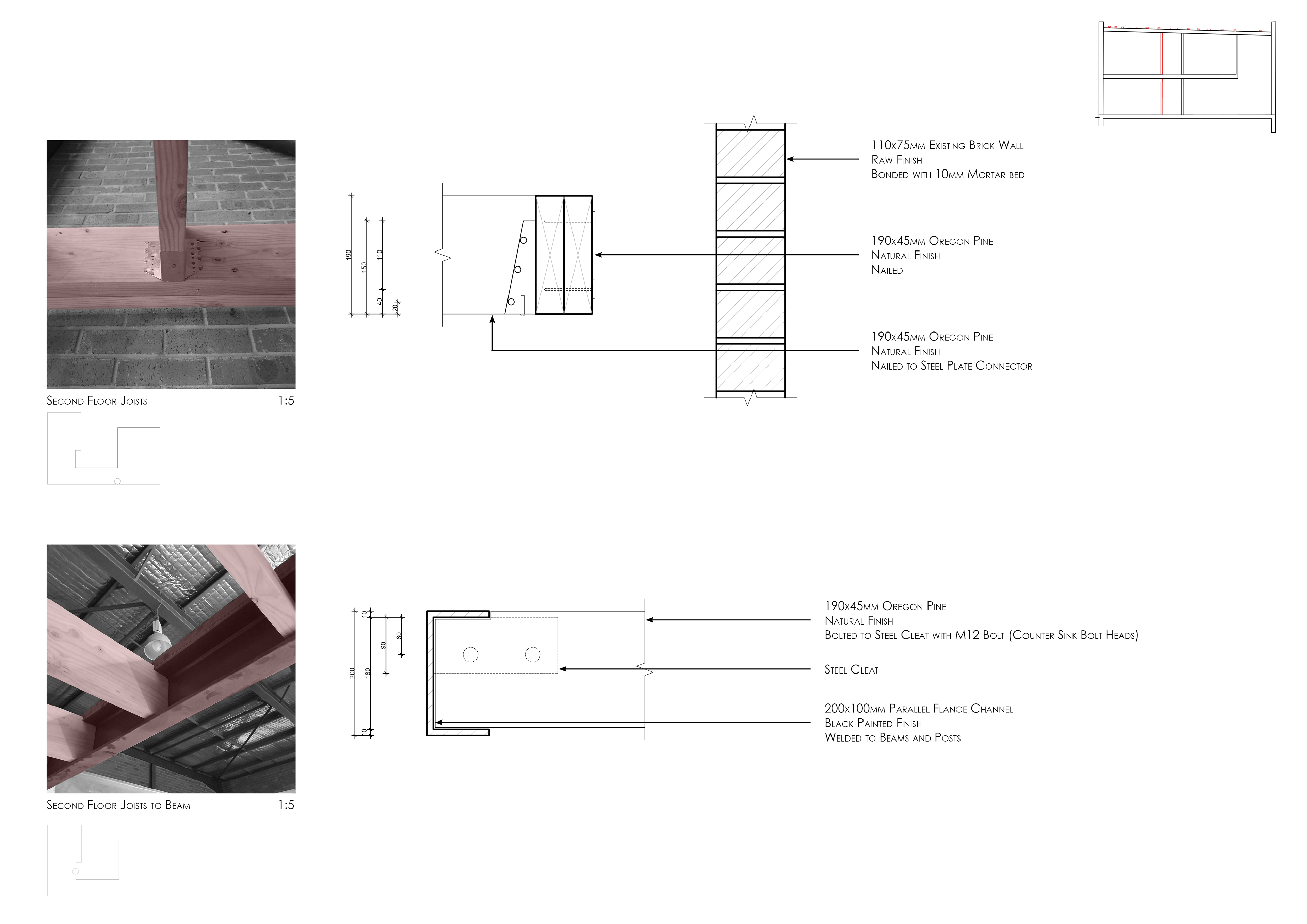

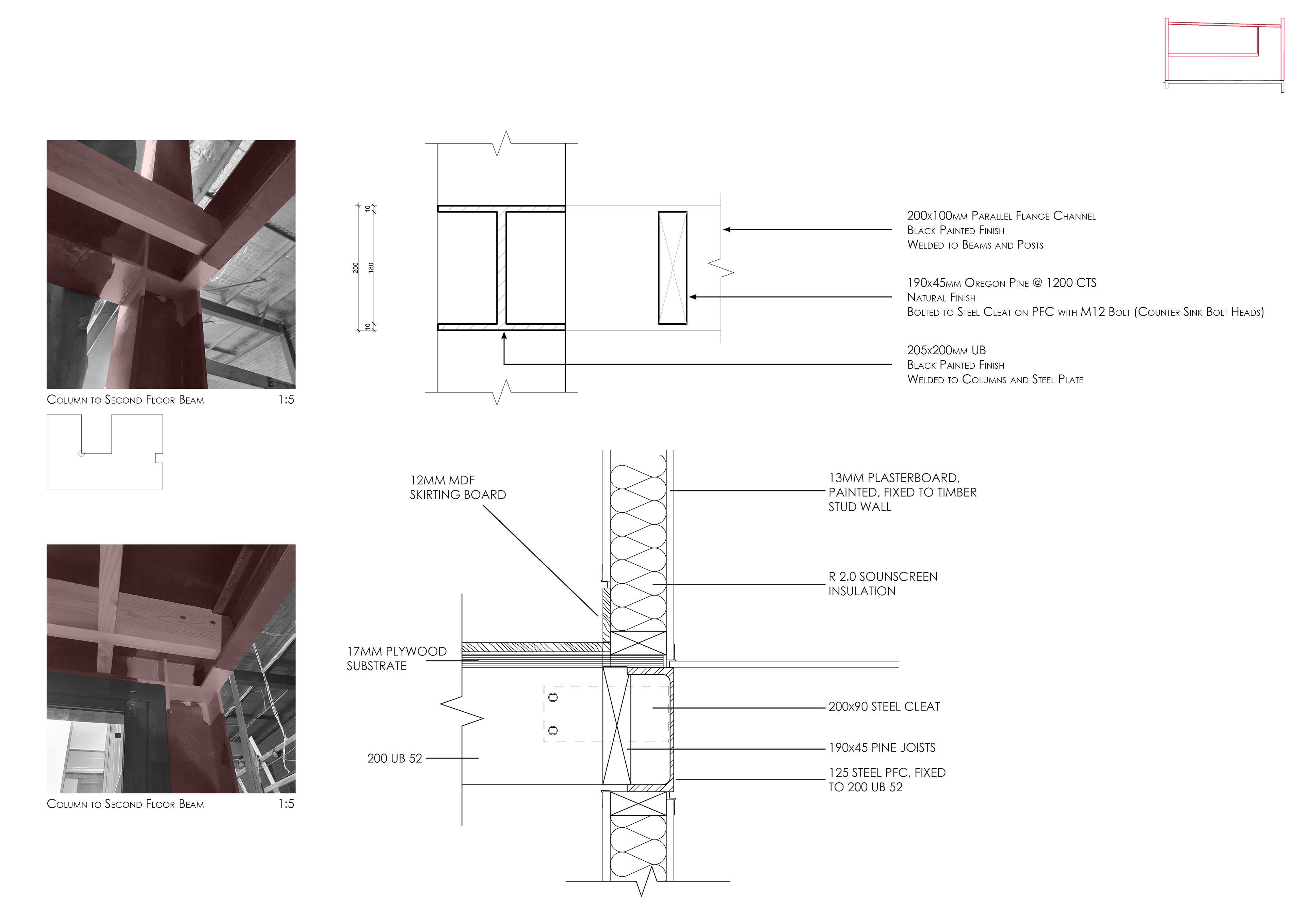

Primary Structure
Primary Structure
Primary Structure
Primary Structure
Primary Structure
Primary Structure
Secondary Structure
Secondary Structure
Secondary Structure

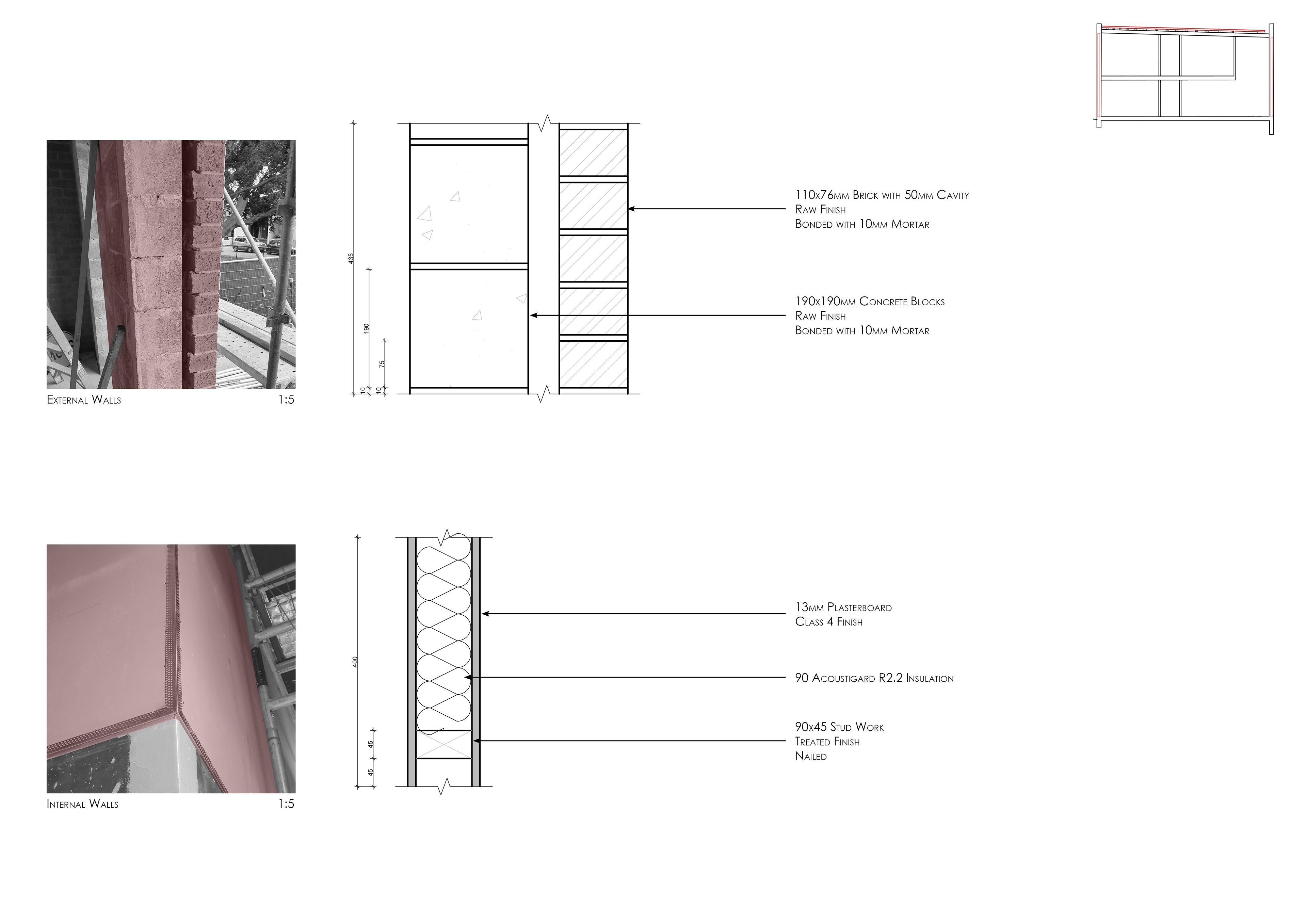

Cladding
